Dual Line Lubrication System

Dual Line Lubrication System
Dual Line Lubrication System
Product Code : 15
Product Description

Owing to our rich knowledge as well as professional workforce, we have achieved a noted position as a reliable manufacturer and exporter of Dual Line Lubrication System. This system is used in steel plants, cement plants, turbine generator, furnaces, sugar plants and spong iron plant. To manufacture this system, we use optimum quality materials and components. This system is comprising of a single pumping station having pumping elements and fitted on the outer periphery of the housing. We offer this Dual Line Lubrication System at reasonable prices to clients.

Features:

  • Rugged construction
  • Easy to install
  • Requires less maintenance

Dual Line Lubrication System

APPLICATION

Dual line system is used where large distance in lubrication point. This is high pressure pump and use in steel plants, cement plants, Turbine generator, furnaces, sugar plants, spong iron plant etc.

CONSTRUCTION

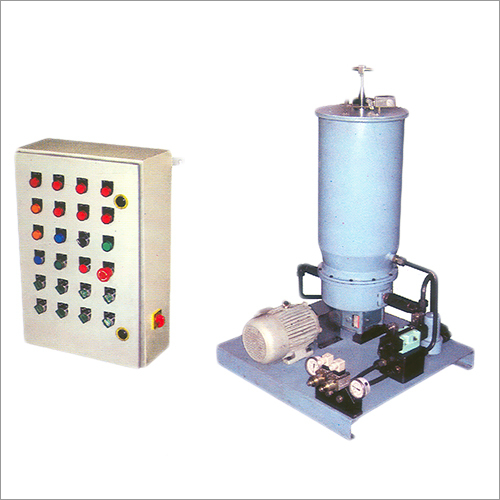

Dual line lubrication system comprising of a single pumping station having pumping elements and fitted on the outer periphery of the housing. Reservoir also mounted on housing and fitted on base plate with motor, gear box, change over valve, pressure gauge etc.

WORKING

In dual line lubrication pump the pumping elements push the grease at high pressure (up to 250 Kg/cm2) with the help of cam. Cam is driven by speed reduction gear, Grease feed in change over valve from pump elements. Change over valve is to deliver grease through one of the out let ports alternatively after receiving signal from end pressure relay, Distribution of grease at different lubrication point done by Dose feeder and this pump operate by the control panel.

END PRESSURE RELAY

It sense the end pressure and gives signal to change over valve through control panel. For checking the pressure two pressure gauge are provided.

ELECTRIC CONTROL PANEL

Electric control panel is required for operate the lubrication system. Panel has the features main on indication, Manual and auto mode indication, Line one and two on indication, Line fault indication, Motor trip indication, Emergency stop button and other standard control. This control panel is available as per customer requirements.

GREASE TRANSFER PUMP

Grease transfer pump is pneumatic version. This pump is directly mounted in the barrel. It transfer the grease to the reservoir of pumping station.
