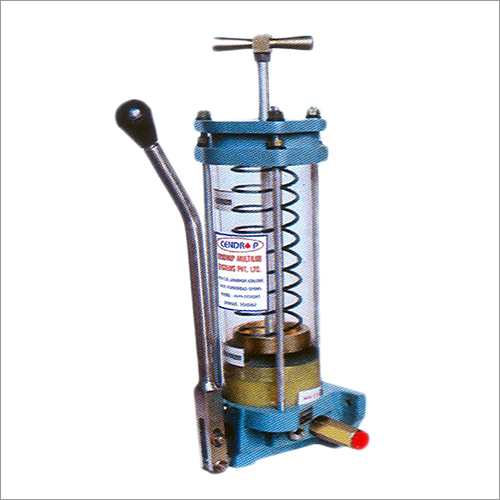

Manual Grease Pumps

Manual Grease Pumps
Manual Grease Pumps
Product Code : 11
Brand Name : CENDROP
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Unit/Units
  • Minimum Order Quantity
Trade Information
  • Payment Terms
  • Cheque, Telegraphic Transfer (T/T), Others
  • Packaging Details
  • As per requirement
  • Main Export Market(s)
  • Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
  • Main Domestic Market
  • All India
Product Description

We have been able to attain strong market goodwill as a trusted organization engaged in manufacturing and supplying Manual Grease Pumps. To manufacture these pumps, we use optimum quality materials and components. These pumps are meant for feeding grease to bearing & other moving part of machines & other lightly machines having 1 to 20 lubrication point. We make available these pumps for clients in different sizes and specifications as per their requirements. Also, we offer these Manual Grease Pumps at affordable prices.

Features:

  • Rugged construction
  • Easy to use
  • Optimum performance

Manual Grease Pumps

APPLICATION

This pump meant for feeding grease to bearing & other moving part of machines & other lightly machines having 1 to 20 lubrication point.

WORKING

On pulling the handle of pump, grease are sucked through suction port on pushing handle of pump grease comes out under pressure through check value. Spring pressure through follower plate exerted over the top surface of the grease further helps to push the grease in suction port.

EQUIPMENT

Pump is made up of purely transparent acrylic reservoir for storage of grease. For sensing the Grease level a tell tale rod is provide and follower plate assembly for help in positive suction of grease. It contains two outlet part of 1/4" BSP right and left side in which one is used as air bleed valve & second port used as a outlet. To check reverse flow of grease, a non return valve is provide in the system at the outlet port.

FILLING OF GREASE

Grease can be filled manually or with another pump. Filling from pump 1/4" BSP port is provide. Manually, we have to remove follower plate, spring, top cover and fill the grease from the top of the reservoir and to fit all the components by pressure . For air removing unscrew the bleed plug pull the handle maximum out and press the follower plate by knob till grease comes out from bleed plug.

DISTRIBUTION SYSTEM

A Progressive block is used to distribute the grease to the available lubrication points in sequence one after another. Progressive Blocks are added as per requirement.

Technical Specifications

Model No.

Reservior Capacity

Discharge

Max. Pressure

Vertical Wall Mounting

CM-MGP- 600 2

6 k.g

2cc per stroke

60 kg/ 2cm2

4 Holes, 7 Dia

CM-MGP -1000 4

1 kg

4cc per stroke

100 kg/ 2cm2

4 Holes, 7 Dia

CM-MGP-1500 4

1.5 k.g

4cc per stroke

100 kg/ 2cm2

4 Holes, 9 Dia
