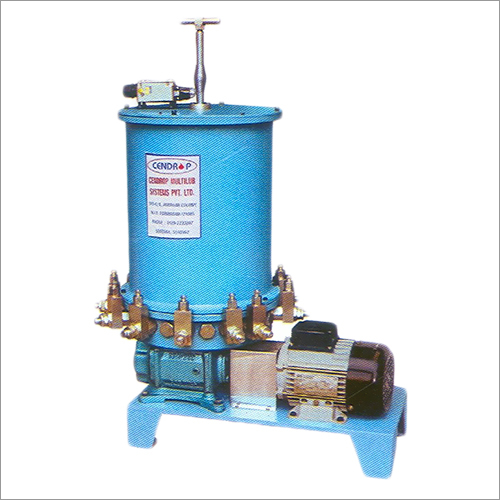

Multiline Radial Lubricator

Multiline Radial Lubricator
Multiline Radial Lubricator
Product Code : 13
Brand Name : CENDROP
Trade Information
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Unit/Units
  • Payment Terms
  • Cheque, Telegraphic Transfer (T/T), Others
  • Packaging Details
  • As per requirement
  • Main Export Market(s)
  • Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
  • Main Domestic Market
  • All India
Product Description

We are identified as one of the leading organizations, engaged in manufacturing and supplying Multiline Radial Lubricator. It is a device meant to discharge metered amount of oil grease from different plunger pumps housed in a common body. We manufacture this lubricator under the firm guidance of expert supervisors using best quality materials. This lubricator is used in sugar, cement, rubber and stone crushing plants. We offer this Multiline Radial Lubricator at market leading prices to clients.

Features:

  • Rugged construction
  • Easy to install
  • Longer working life

Multiline Radial Lubricator

APPLICATION

Multiline radial lubricator is best suited for machine /plant where lubrication is required with high pressure continuously/ intermittently for individual point. This lubricator are used for machine / plant like rolling mill, sugar plant, cement plant, rubber mixing machine, forging hammer, stone crusher, spong iron plant etc.

CONSTRUCTION

This lubricator comprise of a single pumping station having a number of plunger pump placed radically and fitted on to the outer periphery of the housing. Each plunger unit is given a reciprocating motion with the help of a cam. The cam rotates with the help of an electric motor and speed reduction gear box. The dose per plunger pump / cycle is 0.05 to 0.25cc (adjustable) with maximum pressure 200 Kg/cm2. These all plunger pump are connected to the lubrication point directly / progressive block by mean of tube, rubber hose, compression type fitting, clamping etc.

FILLING OF LUBRICANTS

Grease filling in the reservoir can be done manually as well as with the help of other pump. For pump 1/4" BSP port is provided on reservoir.

  • Always use proper & clean lubricants. Avoid foreign particles in the pump. The foreign particles or dust items are the main responsible factor to damage physical components of the pump and chocking in the plunger body.
  • Always fill the lubricants before it is empty to avoid air in the pump. The presence of air may be resulted in improper quantity of discharge.
  • Should always careful with regular maintenance of plungers and reservoir for its long life.
  • Do not plug out put of any pumping unit.

TECHNICAL SPECIFICATION

Model No.

CM RL-01-04

CM RL-02-09

CMRL-03-15

Reservoir Capacity

4 Ltrs.

9 Ltrs.

15 Ltrs.

No. of pump elements

10 Pump elements Max.

12 Pump elements Max.

24 Pump elements Max.

Discharge of Pump/cycle (Adj.)

0.10 to 0.25-cc (Max. 6 gm/minute) per pump element.

0.10 to 0.25-cc (Max. 6 gm/minute) per pump element.

0.10 to 0.25-cc (Max. 6 gm/minute) per pump element.

Gear Box reduction ratio

70:01:00

70:01:00

70:01:00

Power of motor

0.25- H.P. 415 Volt AC, 3 Phase

0.50- H.P. 415 Volt

0.5-1.0- H.P. 415 Volt AC, 3 Phase

Motor rpm

1440 rpm syn.

1440 rpm syn.

1440 rpm syn.

Working Pressure Oil/Grease

200/300 Kg/Cm2 Maximum.

200/300 Kg/Cm2 Maximum.

200/300 Kg/Cm2 Maximum.

Caution:

  • Use clean lubricant.
  • Always fill the lubricant before it is empty to avoid the air.
  • Regular maintenance.
