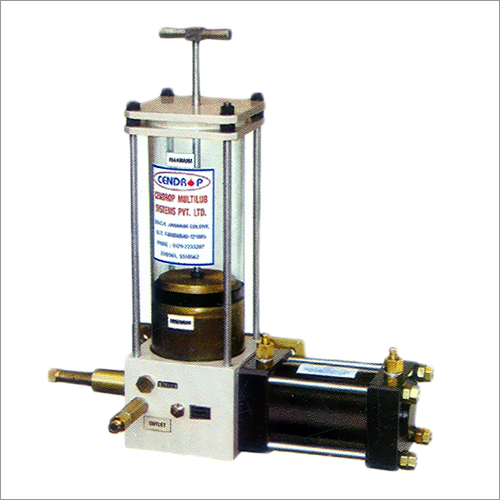

Pneumatic Pump

Pneumatic Pump
Pneumatic Pump
Product Code : 16
Brand Name : CENDROP
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Unit/Units
  • Minimum Order Quantity
Trade Information
  • Payment Terms
  • Cheque, Telegraphic Transfer (T/T), Others
  • Packaging Details
  • As per requirement
  • Main Export Market(s)
  • Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
  • Main Domestic Market
  • All India
Product Description

Pneumatic Pump

APPLICATION

The pneumatic grease pump is suitable for dispensing of grease & automatic feeding of grease to bearing and other moving parts of machines. Such as milling machine, rolling machine, presses & hammers, rubber processing machine, dye casting machine, furnaces etc. This pump is suitable for grease upto NLG-2. For distribution we used progressive blocks through this pump.

WORKING

Pneumatic grease pump are operated through pneumatic line, connected to the ports of pneumatic cylinder. The cylinder is built in with the pump housing. During on period of the pneumatic line a piston inside the cylinder is pushed ejecting out grease from the outlet port of the pump housing. During the reverse flow of pneumatic line grease is sucked through the suction port. In the pump spring force through follower plate exerted on the top surface of the grease make the suction of the grease positive & easier. Pneumatic pump is available in adjustable discharge & multiport with adjustable discharge in each port. Discharge & reservoir of pump is available as per customer requirement.

AIR REMOVING

For air removing, un screw the bleed plug apply compressed air & press the grease pusher by knob till grease come out from bleed port and plug the bleed port. The pump is ready for operation.

CONSTRUCTION

There is a reservoir mounted on the pump body for storage of grease. A tell tale rod connected for sensing grease level.

  • Check valve is fitted on the outlet port of the pump to stop reverse flow of grease into the pump through outlet port.
  • To bleed air entrapped in the system, there is a plug on the pump body which is to be opened till continuous flow of grease starts coming.
  • The adjusting screw is provided in order to vary in output of the grease by tightening the screw the output of grease decreases and vice versa.
  • It is must to put filter regulator unit in the pneumatic line fed to the pump. This will ensure that pneumatic line going to the pump is dust and moisture free.

FILLING

Grease filling in the reservoir can be done manually as well as with the help of other pump. For those who wants to fill grease by another pump, a1/4"  BSP ports is provide on front side of the pump. This port is normally plugged.

These pumps are designed for feeding grease to bearings and various other moving components of machines such as Calendaring machines, Bending machines, Furnaces, Mixing machines, Rolling mills, Batch Mixers and other allied machines having 1-20 lubrication points. Grease from pump is further segregated either with the support of progressive blocks for positive distribution or with the aid of manifold blocks. With the help of manifold blocks grease distribution is according to the pipe resistance.

Specifications:

Model

Reservoir Capacity

Port Location

Reservoir material

Output per stroke

Solenoid Valve

Pn-GP-1500-6

1.5 litres

Left

Acrylic

6 cc

Not Included

Pn-GP-1500-10

1.5 litres

Left

Acrylic

10 cc

Not Included

Pn-GP-3000-6

3 litres

Left

Acrylic

6 cc

Not Included

Pn-GP-3000-10

3 litres

Left

Acrylic

10 cc

Not Included

Pn-GP-1500-6/Adj.

1.5 litres

Left

Acrylic

6 cc

Not Included

Pn-GP-1500-10/Adj.

1.5 litres

Left

Acrylic

10 cc

Not Included

Pn-GP-3000-6/Adj.

3 litres

Left

Acrylic

6 cc

Not Included

Pn-GP-3000-10/Adj.

3 litres

Left

Acrylic

10 cc

Not Included

Pn-GP-1500-6/S24V

1.5 litres

Left

Acrylic

6 cc

Included - 24 V DC

Pn-GP-1500-10/S24V

1.5 litres

Left

Acrylic

10 cc

Included - 24 V DC

Pn-GP-3000-6/S24V

3 litres

Left

Acrylic

6

Included - 24 V DC

Pn-GP-3000-10/S24V

3 litres

Left

Acrylic

10 cc

Included - 24 V DC

Pn-GP-1500-6/Adj./S24V

1.5 litres

Left

Acrylic

6

Included - 24 V DC

Pn-GP-1500-10/Adj./S24V

1.5 litres

Left

Acrylic

10 cc

Included - 24 V DC

Pn-GP-3000-6/Adj./S24V

3 litres

Left

Acrylic

6 cc

Included - 24 V DC

Pn-GP-3000-10/Adj./S24V

3 litres

Left

Acrylic

10 cc

Included - 24 V DC

Pn-GP-1500-6/S220V

1.5 litres

Left

Acrylic

6 cc

Included - 220 V AC

Pn-GP-1500-10/S220V

1.5 litres

Left

Acrylic

10 cc

Included - 220 V AC

Pn-GP-3000-6/S220V

3 litres

Left

Acrylic

6 cc

Included - 220 V AC

Pn-GP-3000-10/S220V

3 litres

Left

Acrylic

10 cc

Included - 220 V AC

Pn-GP-1500-6/Adj./S220V

1.5 litres

Left

Acrylic

6 cc

Included - 220 V AC

Pn-GP-1500-10/Adj./S220V

1.5 litres

Left

Acrylic

10 cc

Included - 220 V AC

Pn-GP-3000-6/Adj./S220V

3 litres

Left

Acrylic

6 cc

Included - 220 V AC

Pn-GP-3000-10/Adj./S220V

3 litres

Left

Acrylic

10 cc

Included - 220 V AC

Pn-GP-1500-6/S110V

1.5 litres

Left

Acrylic

6 cc

Included - 110 V AC

Pn-GP-1500-10/S110V

1.5 litres

Left

Acrylic

10 cc

Included - 110 V AC

Pn-GP-3000-6/S110V

3 litres

Left

Acrylic

6 cc

Included - 110 V AC

Pn-GP-3000-10/S110V

3 litres

Left

Acrylic

10 cc

Included - 110 V AC

Pn-GP-1500-6/Adj./S110V

1.5 litres

Left

Acrylic

6 cc

Included - 110 V AC

Pn-GP-1500-10/Adj./S110V

1.5 litres

Left

Acrylic

10 cc

Included - 110 V AC

Pn-GP-3000-6/Adj./S110V

3 litres

Left

Acrylic

6 cc

Included - 110 V AC

Pn-GP-3000-10/Adj./S110V

3 litres

Left

Acrylic

10 cc

Included - 110 V AC
